In red light therapy, irradiance (mW/cm²) is the power density delivered to tissue — how intense the light is at the skin surface. Fluence (J/cm²) is the total energy delivered per unit area over a session. Both variables appear in clinical trial protocols and both matter for outcomes. But neither figure is useful without knowing how the device was measured — and most consumer-facing irradiance figures are not measured the same way clinical research measures them.
This article explains what both variables mean, what ranges the clinical research actually uses, why the biphasic dose response is the most important concept in PBM dosing, and what type of measurement data lets you evaluate a device meaningfully. For the cellular mechanism that makes dosing matter, see the science of photobiomodulation and the wavelength dosing and penetration reference.
The Core Dosing Variables — Defined
| Term | Unit | What It Measures | Why It Matters |
|---|---|---|---|
| Irradiance (Power Density) | mW/cm² | Power delivered per unit area at the skin surface | Determines intensity — too low and CCO activation is insufficient; too high and thermal effects overtake photochemical ones |
| Fluence (Energy Density) | J/cm² | Total energy delivered per unit area over a session | The variable most directly correlated with outcome in clinical trials — what the biphasic dose response describes |
| Session Duration | Minutes / seconds | Time of light exposure | With irradiance fixed, duration controls fluence — longer sessions = more joules delivered to tissue |
| Wavelength | Nanometers (nm) | Spectral identity of the photons | Determines tissue depth target and which chromophores absorb the light — dosing figures only make sense in context of wavelength |
| Treatment Distance | cm / inches | Distance between device and skin | Irradiance drops significantly with distance — the same panel at 6 inches delivers a very different dose than at 12 inches |
Irradiance and Fluence: Why Both Variables Matter
The distinction between irradiance and fluence is where most dosing confusion in red light therapy originates — and where misleading marketing claims do the most damage. They measure different things and are not interchangeable.
Irradiance is the rate of energy delivery. Fluence is the total energy delivered. Doubling the irradiance and halving the session time produces the same joule count — but the biological outcome may not be identical, because the rate of photon delivery is itself a variable that influences cellular response. Zein et al.'s 2018 review of light parameters and PBM efficacy in the Journal of Biomedical Optics documented that irradiance, fluence, wavelength, pulse structure, and treatment distance all independently influence outcomes — no single parameter substitutes for the others.[1]
The calculation connecting them:
Example: 100 mW/cm² × 600 seconds (10 min) ÷ 1,000 = 60 J/cm²
Session duration and irradiance are the two levers that control total dose. A device at 50 mW/cm² needs 20 minutes to reach 60 J/cm². A device at 200 mW/cm² reaches it in 5 minutes. Whether these two protocols are equivalent depends on whether both are operating within the therapeutic window — which the biphasic dose response defines.
The Biphasic Dose Response: Why More Is Not Always Better
The biphasic dose response describes the observation that low-to-moderate doses of photobiomodulation stimulate biological activity while high doses inhibit it. The relationship is not linear. It follows an inverted-U curve: outcomes improve as dose increases toward an optimal range, then decline or reverse as dose continues to rise.
Hamblin's 2018 review in Photochemistry and Photobiology covers the photochemical mechanisms underlying PBM, including cytochrome c oxidase activation and mitochondrial redox signaling — the pathway through which dose-dependent effects are mediated.[2] The biphasic pattern this mechanism produces has been documented across a range of tissue types in the broader PBM literature. Mitrofanis's 2025 review in Neural Regeneration Research reinforced the same framework for neuroprotective applications — emphasizing that effective PBM dosing requires hitting the therapeutic window, not simply maximizing energy delivered.[5]
The biphasic response also places a real ceiling on how high useful irradiance can go. The PBM literature describes upper bounds beyond which thermal effects begin to compete with photochemical effects — with reported thresholds varying by wavelength, beam parameters, and tissue type. Devices reporting very high irradiance figures warrant close scrutiny of how those measurements were taken, particularly whether professional spectroradiometry or a consumer solar meter was used.
"Dosing in photobiomodulation isn't just about how many joules you accumulate — it's about whether photons are reaching tissue at an irradiance that activates the mitochondrial pathway without overwhelming it. Cytochrome c oxidase has an optimal activation window. Below it, you're not generating sufficient signal to drive meaningful downstream effects. Above the thermal threshold, the photochemical mechanism gives way to heat, and you've left PBM territory entirely. This is why measurement method matters as much as the number itself — if the irradiance figure is inflated, every dosing calculation downstream is wrong from the start."— Dr. Alexis Cowan, PhD, Molecular Biology (Princeton University), Scientific Advisor, Mito Red Light
What Irradiance and Fluence Ranges Does the Clinical Research Use?
The most reliable reference for evaluating device output is the parameter ranges used in published human trials that produced measurable outcomes. Across the PBM literature, effective protocols cluster within consistent ranges.
| Study / Application | Wavelength | Irradiance | Fluence | Key Outcome |
|---|---|---|---|---|
| Pruitt et al. 2022[3] — in-vivo CCO activation | 810nm LED | ~135 mW/cm² | Single session | Significant increases in oxidized CCO and tissue oxygenation in living human forearm — direct mitochondrial activation confirmed in vivo |
| Miranda et al. 2024[6] — wound dose-response (protocol) | 660nm | Not specified | Arms: 4, 8, and 12 J/cm² | Randomized trial protocol comparing three dose levels for diabetic foot ulcer healing — results not yet published. Listed here to illustrate dose-range design in active wound PBM research. |
| Jiang et al. 2025[7] — neck pain | 660nm wearable | 40 mW/cm² | 48 J/cm² | Reported VAS pain reduction over 4 weeks — effective outcome at relatively low irradiance with extended duration. ⚠️ Dose and outcome figures require full-text verification; PubMed abstract not available at time of publication. |
| Barolet et al. 2009[8] — skin collagen | 660nm LED | 50 mW/cm² | 4 J/cm² × 12 sessions | 31% procollagen increase; more than 90% of participants showed wrinkle depth reduction — modest per-session dose, cumulative effect over repeat sessions |
Effective irradiance in human LED studies tends to fall in the 40–150 mW/cm² range for consumer-format devices. Effective fluence per session ranges from roughly 4 J/cm² for skin surface applications to 50 J or more for larger muscle and joint targets. These ranges describe parameters used in published trials — they are not universal prescriptions and should not be interpreted as dosing guidance for any individual or condition.
For the complete clinical evidence base on safety parameters and dose ranges, see the safety parameters and wavelengths clinical evidence page and the research evidence hub.
Why Measurement Method Determines Whether Any Dosing Figure Is Meaningful
Irradiance and fluence figures are only useful for dosing decisions if they were measured under controlled, reproducible conditions with calibrated equipment. The red light therapy industry has a significant measurement problem — and most consumers are not equipped to evaluate it.
Consumer Solar Meters vs. Professional Spectroradiometry

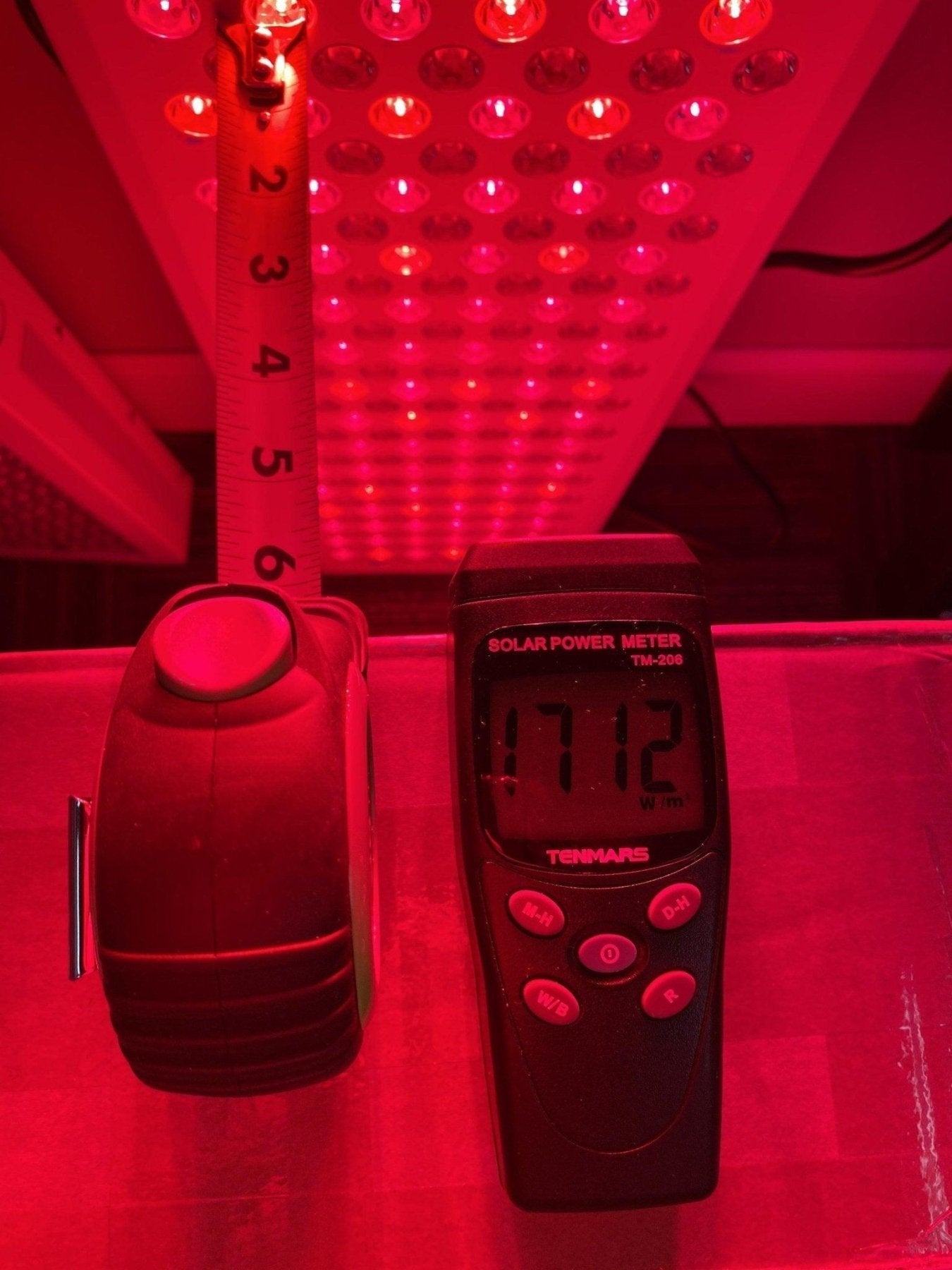

Most irradiance figures published by device manufacturers are measured with inexpensive consumer-grade solar meters — devices calibrated for broad-spectrum sunlight intensity, not the narrow spectral output of specific LEDs. The problems with using solar meters for PBM device evaluation are well documented:
- Spectral mismatch: Solar meters are calibrated for the solar spectrum (AM1.5), not for 660nm or 850nm LEDs. They can significantly over- or underreport actual output depending on the sensor's spectral sensitivity curve relative to the wavelengths being measured.
- Measurement variability: Different solar meter brands produce meaningfully different readings of the same device — often varying by 30–50% or more. Two companies testing identical panels with different consumer meters can report figures that look completely different while both claiming accuracy.
- No standardized conditions: Consumer measurements are typically taken at a single point, at a single distance, without controlling for beam angle, temperature, or detector orientation — all variables that affect the reading.
The result: consumer solar meter irradiance figures are useful only for rough directional comparison between devices tested with the same meter under identical conditions. They cannot support accurate fluence calculations, and they are not the figures used in clinical research protocols.
What Professional Laboratory Testing Measures
Professional spectroradiometric testing in an accredited laboratory measures actual spectral irradiance — power output at each specific wavelength, calibrated against NIST-traceable standards, at controlled distances and angles. This is the measurement approach used in clinical research, regulatory submissions, and medical device certification.
Professional testing gives you:
- Irradiance at specific wavelengths — not a broad-spectrum aggregate
- Total output in J/cm² per minute at specified treatment distances
- Spectral distribution confirming which wavelengths are present and at what intensity
- Beam uniformity data showing whether output is consistent across the panel face
How Mito Red Light Approaches Testing and Dosing Guidance
Mito Red Light publishes independent third-party laboratory testing data for its panels, conducted by an ISO/IEC 17025 accredited facility using professional spectroradiometry. This data includes spectral irradiance by wavelength, total output in J/cm² per minute, and beam uniformity at standard treatment distances — the same measurement framework used in clinical research.
Independent Test Data — Published in Full
Mito Red Light's professional spectroradiometric test results are published at the link below. The data shows actual spectral irradiance by wavelength, total J/cm² per minute output, and beam uniformity at standard treatment distances — tested by an independent ISO/IEC 17025 accredited laboratory.
This is the data that drives the usage guidelines in the Mito Red Light user manual. Dosing recommendations are not derived from consumer solar meter readings.
Where Mito Red Light panels land in the professional testing data: MitoPRO and MitoADAPT series panels deliver approximately 2.0–3.5 J/cm² per minute at recommended treatment distances. At a standard 10-minute session per body area, this places total fluence in the 20–35 J/cm² range — within the parameters used in human clinical trials across musculoskeletal, recovery, and skin applications. These figures are published for educational comparison and are not prescriptive dosing guidance.
Consumer solar meter measurements are also published as reference figures for comparison purposes — clearly labeled as such, and not used to calculate dosing recommendations.
Practical Dosing Guidance: Applying This at Home
Translating the research into a home protocol comes down to a few consistent principles supported across the clinical literature:
Start conservatively. Begin with 5 minutes per treatment area and build toward 10 minutes over the first 1–2 weeks. The biphasic dose response means starting in the lower portion of the therapeutic window lets you observe how your body responds before increasing dose.
Consistency outperforms intensity. The downstream signaling effects of CCO activation continue for hours after a session. Regular sessions 4–6 days per week at moderate dose accumulate benefit more reliably than occasional long sessions. The 2025 NIA PBM workshop review (Frankowski et al., GeroScience) summarizes mechanisms and therapeutic applications of PBM across age-associated conditions and identifies consistent treatment protocols as an area of active investigation.[4]
Distance changes the dose. Move closer to the panel and irradiance increases, reducing the time needed to reach a given fluence. Move further away and the inverse applies. Use irradiance data at your actual treatment distance — not a single-distance headline figure.
Listen to your body. The biphasic dose response means more output does not automatically mean better outcomes. If you notice diminishing returns or unusual sensitivity, reducing session duration is usually more productive than increasing it.
Frequently Asked Questions
What is irradiance in red light therapy?
Irradiance is the power of light delivered per unit area at the skin surface, measured in milliwatts per square centimeter (mW/cm²). It represents how intense the photon dose is at the point of delivery. Higher irradiance means more photons per unit time — but the biphasic dose response means higher is not always better.
What are joules in red light therapy?
Joules per square centimeter (J/cm²), also called fluence or energy density, represent the total energy delivered to tissue over a session. The formula: J/cm² = irradiance (mW/cm²) × time (seconds) ÷ 1,000. This is the parameter most directly correlated with clinical outcomes in human trials.
What is the biphasic dose response?
The biphasic dose response describes the observation that low-to-moderate PBM doses stimulate biological activity while high doses inhibit it. The curve follows an inverted U — outcomes improve as dose increases toward an optimal window, then decline as dose rises further. More light is not always better. The goal is to deliver an effective dose within the therapeutic window, not to maximize output.
How many joules should I use per session?
Effective fluence in human trials varies by application: skin protocols commonly use 4–12 J/cm² per session; musculoskeletal and recovery protocols often use higher totals (20–50+ J per area depending on target depth). Mito Red Light panels deliver approximately 2–3.5 J/cm² per minute at recommended distances — a 10-minute session produces 20–35 J/cm², within the parameter ranges used across published human trials for these applications. These ranges describe figures observed in research and are presented for educational comparison — they are not medical or dosing guidance for any individual. Consult a qualified healthcare professional before beginning any light-therapy protocol.
Why do irradiance figures vary so much between devices?
Most device irradiance figures are measured with consumer-grade solar meters not calibrated for narrow-spectrum LED output. Different meters produce meaningfully different readings of the same device. Professional spectroradiometric testing in an accredited laboratory is the only approach that produces reliable data comparable to clinical research standards. Mito Red Light publishes independently tested spectroradiometric data at mitoredlight.com/pages/independent-test-data.
How does treatment distance affect dosing?
Irradiance falls with distance — moving twice as far from the panel reduces irradiance to roughly one-quarter, depending on panel geometry and beam characteristics. Treatment distance is a critical variable in any dosing calculation. Always use irradiance data measured at your actual treatment distance, not a single headline figure taken at one specific distance.
Is 200 mW/cm² too high for red light therapy?
It depends on measurement method and wavelength. The PBM literature describes upper bounds beyond which thermal effects begin to compete with photochemical effects, with reported thresholds varying by wavelength and tissue type — a 200 mW/cm² figure measured with professional spectroradiometry and appropriate wavelength calibration sits well below the upper bounds described in the mechanistic literature for NIR. A consumer solar meter reading of 200 mW/cm² may reflect an inflated measurement — which is why knowing how a figure was measured matters as much as the figure itself.
References
- Zein R, Selting W, Hamblin MR. (2018). Review of light parameters and photobiomodulation efficacy: dive into complexity. Journal of Biomedical Optics. DOI: 10.1117/1.JBO.23.12.120901. PubMed
- Hamblin MR. (2018). Mechanisms and Mitochondrial Redox Signaling in Photobiomodulation. Photochemistry and Photobiology. DOI: 10.1111/php.12864. PubMed
- Pruitt T, et al. (2022). Photobiomodulation at Different Wavelengths Boosts Mitochondrial Redox Metabolism and Hemoglobin Oxygenation: Lasers vs. Light-Emitting Diodes In Vivo. Metabolites. DOI: 10.3390/metabo12030185. PubMed
- Frankowski DW, et al. (2025). Light buckets and laser beams: mechanisms and applications of photobiomodulation (PBM) therapy. GeroScience. PubMed
- Mitrofanis J. (2025). A spotlight on dosage and subject selection for effective neuroprotection: exploring the central role of mitochondria. Neural Regeneration Research. PubMed
- Miranda MB, et al. (2024). Effect of Using Photobiomodulation (660 Nanometers) for the Treatment of Diabetic Ulcers: Protocol for a Randomized Controlled Trial. International Journal of Lower Extremity Wounds. DOI: 10.1177/15347346241264736. PubMed
- Jiang H, et al. (2025). Efficacy of a wearable 660 nm red light therapy device in alleviating neck pain and enhancing neck function. Lasers in Medical Science. PubMed ⚠️ Abstract not available in PubMed — specific dose and outcome figures require full-text verification before publication.
- Barolet D, Roberge CJ, Auger FA, Boucher A, Germain L. (2009). Regulation of skin collagen metabolism in vitro using a pulsed 660 nm LED light source: clinical correlation with a single-blinded study. Journal of Investigative Dermatology. DOI: 10.1038/jid.2009.186. PubMed
This article was reviewed for scientific accuracy by Dr. Alexis Cowan, PhD in Molecular Biology (Princeton University), who specializes in mitochondrial function and photobiomodulation research. Last updated: May 2026.
This article discusses published scientific research and general educational information about photobiomodulation and red light therapy. It does not constitute medical advice and does not make specific claims about Mito Red Light devices. The research cited reflects independent peer-reviewed studies and does not imply that any Mito Red Light product has been evaluated, approved, or cleared by the FDA or any other regulatory body for the diagnosis, treatment, cure, or prevention of any disease or medical condition. Individual results vary. Consult a qualified healthcare professional before beginning any light therapy protocol, particularly if you have a pre-existing medical condition, are pregnant, or are taking photosensitising medications.
Mito Red Light products are general wellness devices. They are not medical devices and have not been evaluated, cleared, or approved by the FDA or any regulatory body for the diagnosis, treatment, cure, or prevention of any disease or medical condition. Any references to peer-reviewed research or clinical studies on this page describe findings from independent scientific literature and do not imply that Mito Red Light devices have been studied, tested, or proven effective for any specific condition. Always consult a qualified healthcare provider before beginning any new wellness routine, particularly if you have a medical condition or are taking medication.
